How To Customize Workout Program For e2-Console Treadmill (550Te2)

(Standard Operating Procedure)

V01, 20200902



Application:



Model	Console	Serial# Range	Check & Apply
550T	e2 Series	All	N/A



Knowledge: -

Time/Man Power: 2-3 min / 1 person



Tools & Parts:

USB STICK

Optional

Description:

Users can customize workout profile to meet personal workout goals. By using CUSTOM program, users may easily track exercise progress and choose from previously created profiles or create a desired one.



Instruction:

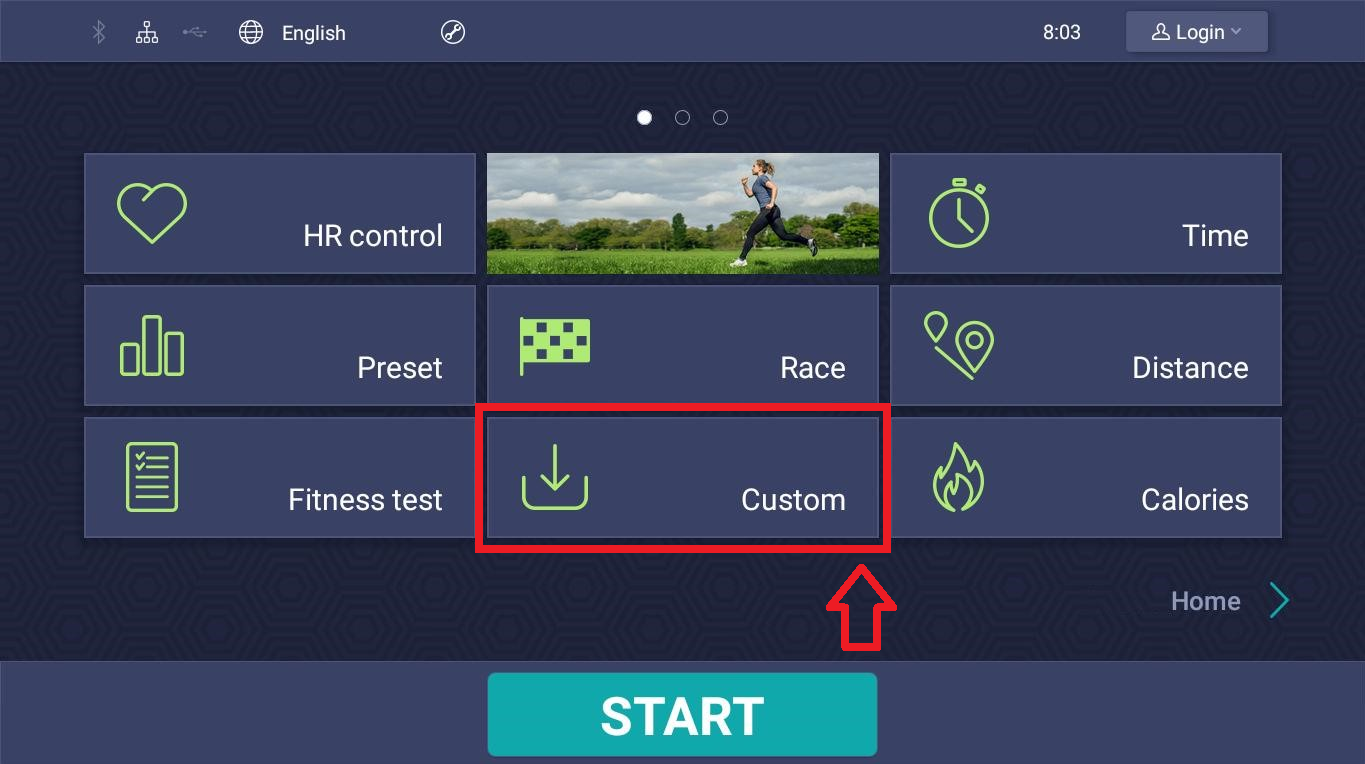

Step1) Select CUSTOM on 550Te2 console

Step2) Insert a USB memory stick into the USB port

NOTE: USB memory is needed if you are going to load a previously saved profile from your USB memory or if you are going to save the profile you are creating, for future use.

Step3) If you wish to create a new profile, follow the procedure below:

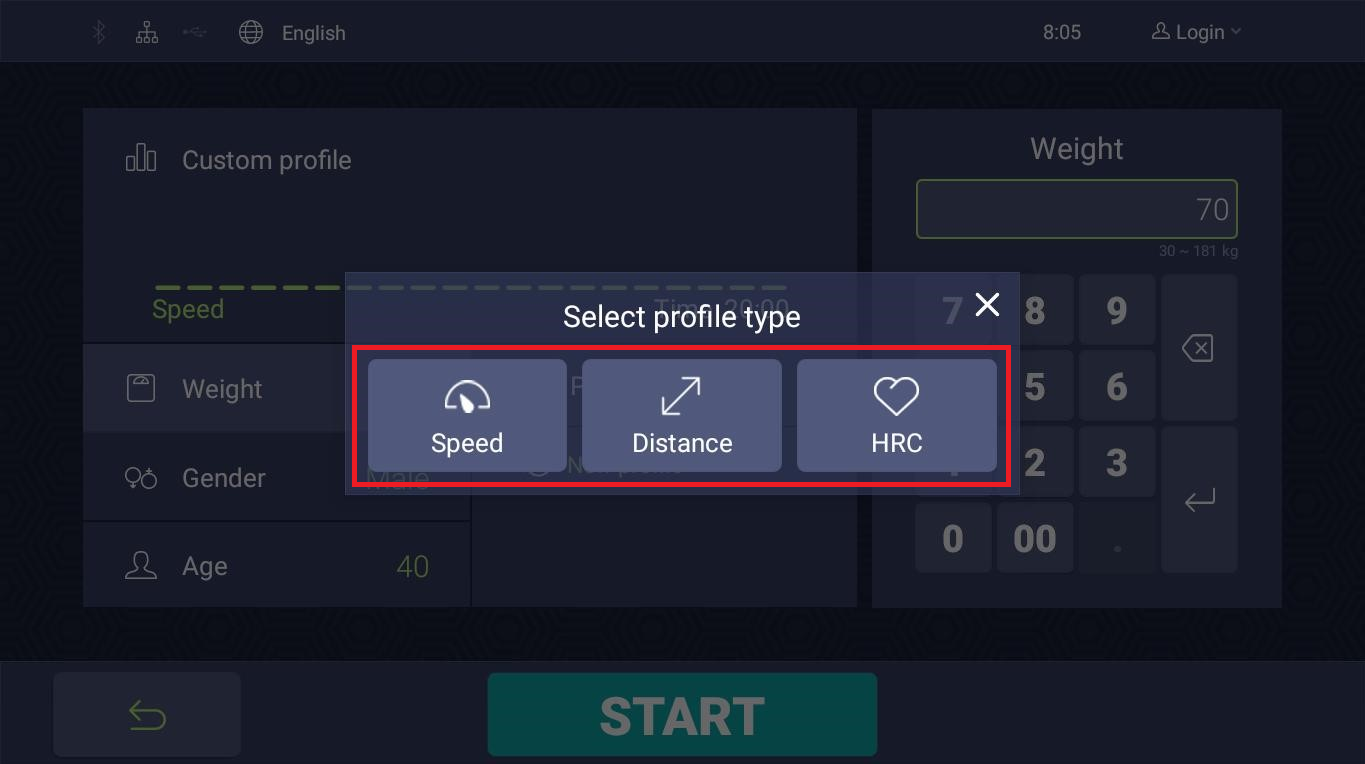

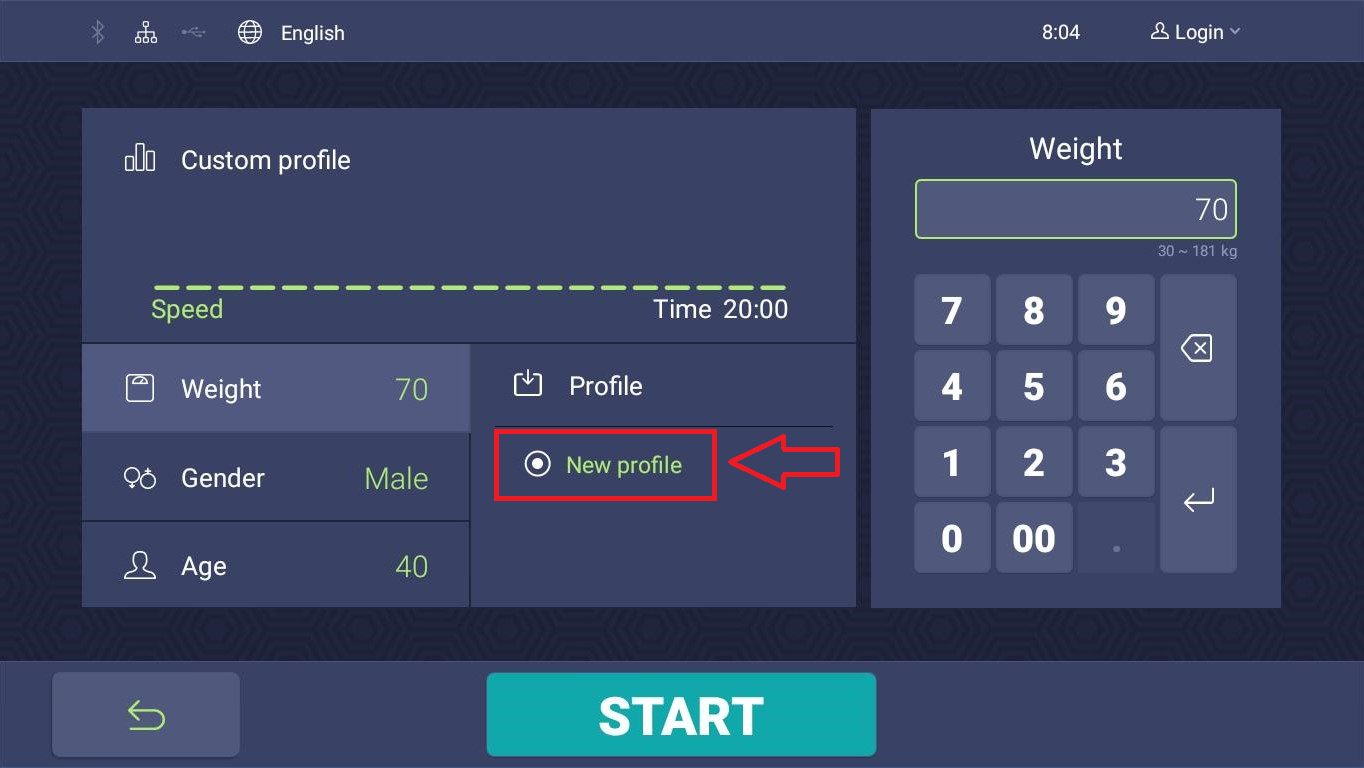

    1- Press "New profile" and select one of the options (Speed, Distance, HRC)

   2- Enter the desired values for the required fields

Profile Type	Time	Optional Input	Incline	NOT editable
Speed	00:20" - 99':59"	Speed: 0.5-16mph/0.8-25kmh	0-15%	Distance
Distance	00:20" - 99':59"	Distance: Variable range depending on time value	0-15%	Speed
HRC	00:20" - 99':59"	Heart Rate: 108-180	---	% of Max

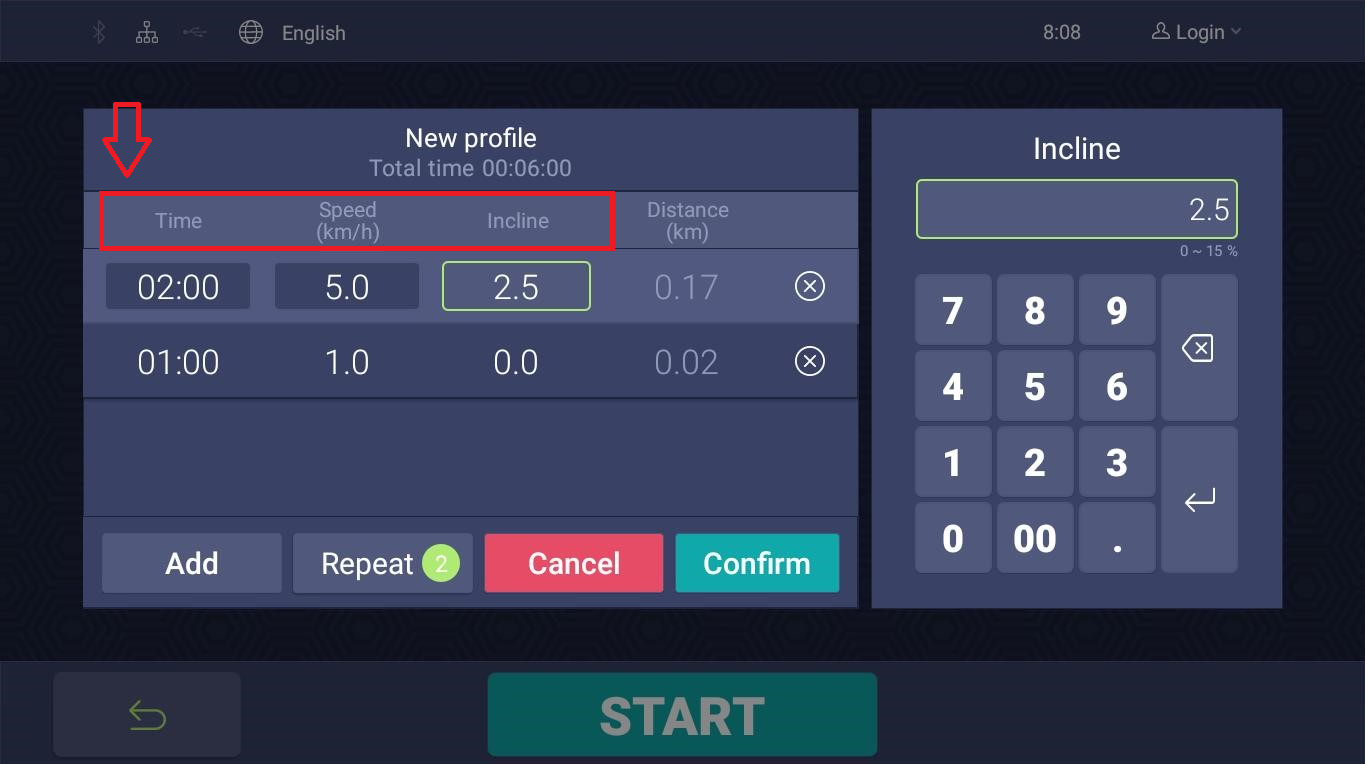

Example: Speed (profile Type)

   3- ADD: Add an extra row to the workout profile (above photo has 2 rows and more can be added by pressing Add button)

   4- Repeat: By clicking on the Repeat button and selecting a number, the entire profile will be repeated equal to that number.

Example: In the above profile, there are 2 rows, 1 hour and 2 hours workout profiles. By repeating this 2 times, the entire workout program will be 6 hours (2+1+2+1). See the photo in #6 for an illustration of the profile.

   5- Cancel: Click Cancel to exit the new profile setting page and return to main custom program page.

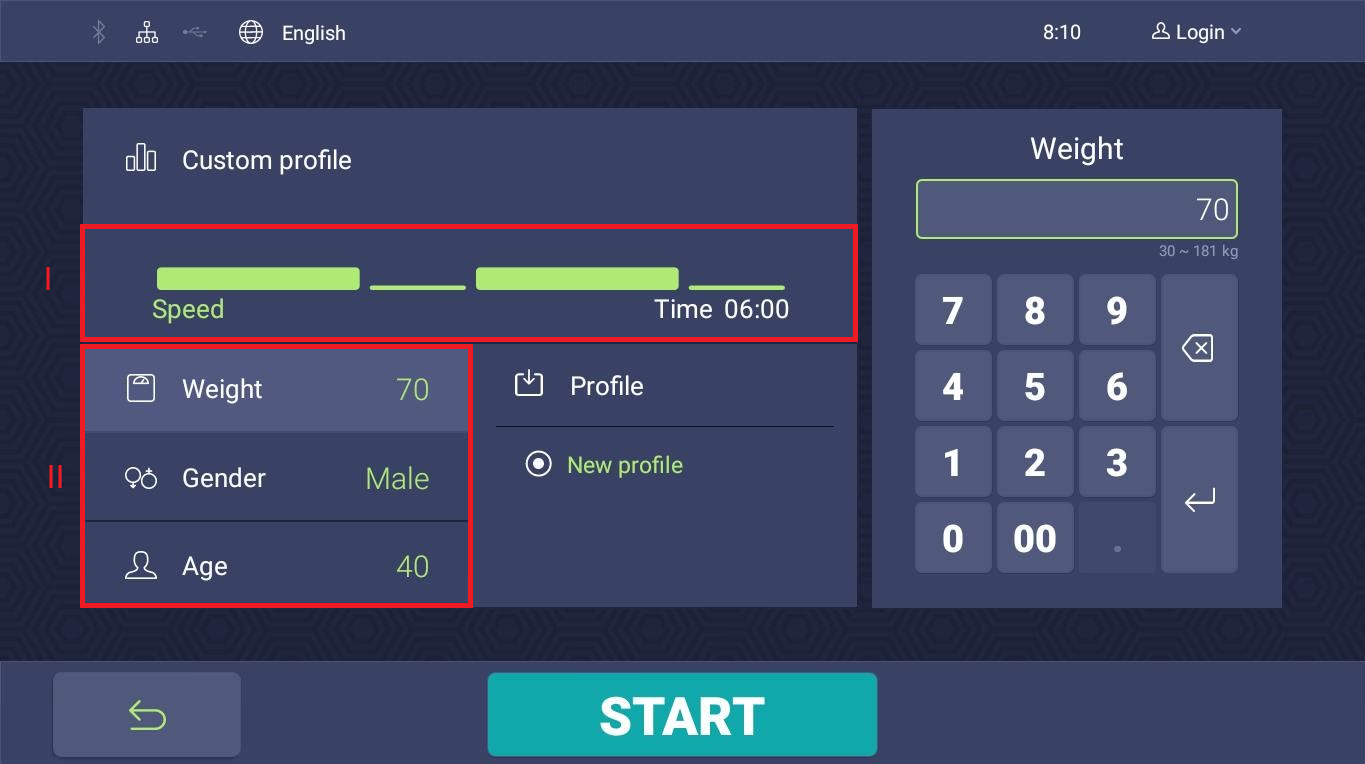

   6- Confirm: Click Confirm to see an illustration of the profile (I) and check/modify the personal info (II), Weight, Gender and Age, before starting the workout..



Step4) Click START  to start the workout based on the customized profile.

NOTE: During the workout, the speed and the Incline can be changed.

Step5) If you wish to save the workout profile and use it in the future, once the workout ended, in the workout summary page, click SAVE.

NOTE: For being able to save the workout profile (or workout results) to a USB memory at the end of the workout, the USB memory MUST be connected to the console before pressing the START button.
