(Standard Operating Procedure)
V01, 20181029
Application:
|
Model |
Console |
Serial# Range |
Check & Apply |
|
550T |
only i series |
All |
N/A |
Knowledge: Windows skills (Microsoft Excel application)
Time/Man Power: 5-10 min / 1 person
Tools:
|
|
|
|
USB STICK |
LAPTOP |
|
Mandatory |
Mandatory |
Description:
1- Custom files: Create *.CSV files and rename according to the instructions (Below naming is only for Treadmill) or use the attached template.
2- Tool:

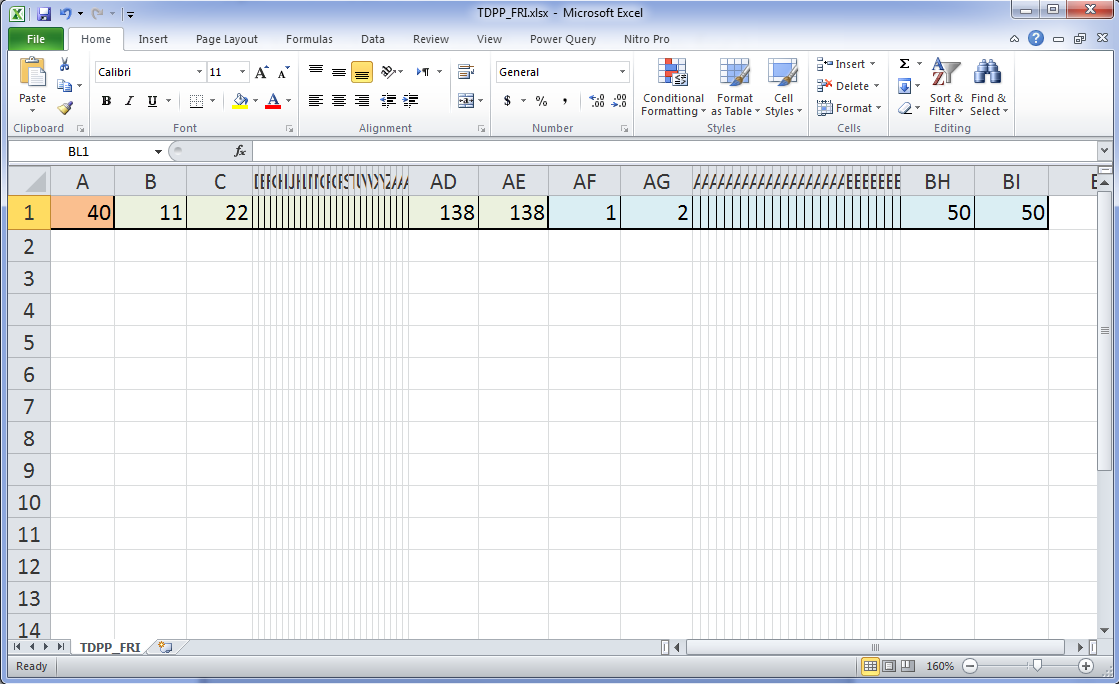

- Use Microsoft Excel to edit the *.CSV files
3- Time (minutes):

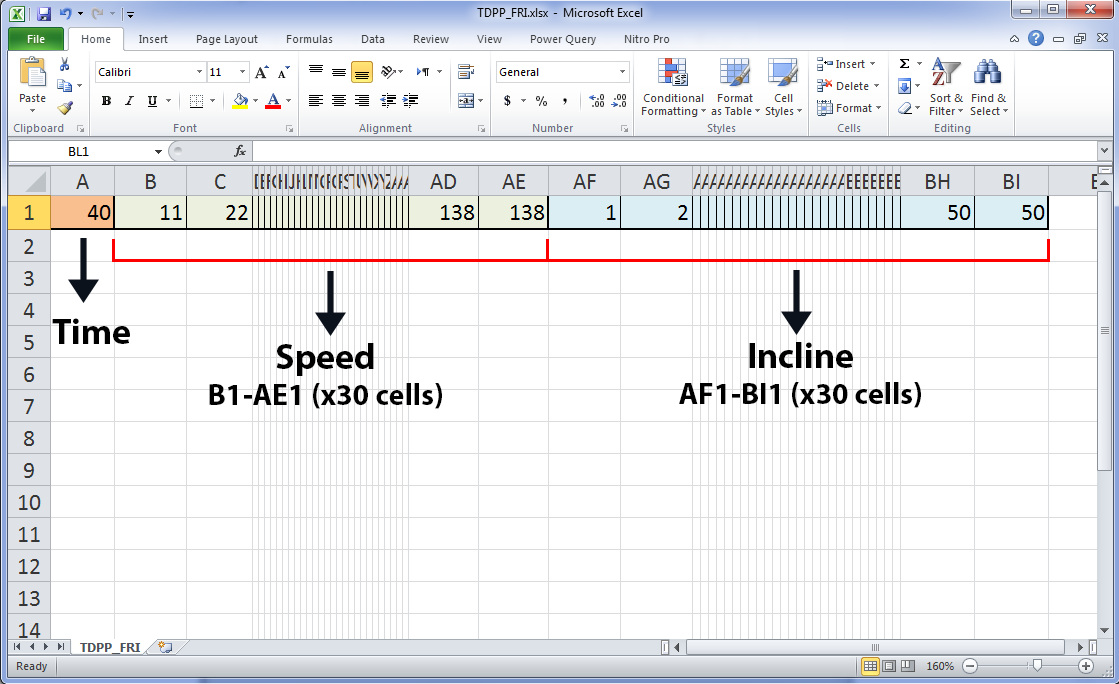

The Cell# A1 represents the total time of the workout which is divided into 30 intervals.
4- Speed & Incline:
Speed: Cell# B1 - AE1
Incline: Cell# AF1 - BI1
|
NOTE: Follow the rules below to enter the speed and incline values: - Value: 0.8 -> enter 8 in CSV file - Value: 1 -> enter 10 in CSV file - Value: 10 -> enter 100 in CSV file For example, for 22.5 km/h speed for treadmill you should enter 225 on CSV file. |
|

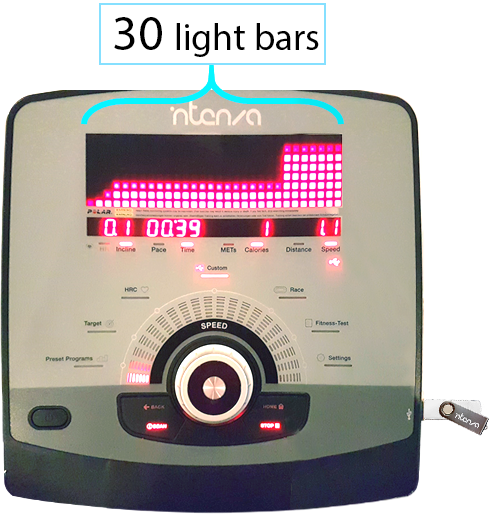

NOTE: Why do Speed and Incline have the capacity to enter 30 data sets? Because the console is displaying these 2 variables using 30 columns for each (below picture) and each data set in the CSV file represents one column on the console. |
5- Copy the customized files in below route:
6- Copy all below 4 folders to the root directory of USB memory:
- USB memory must be in FAT32 format.
7- After you have the customized files ready, follow the below video to run it on Intenza i-console:
a) Insert the USB memory and "Create User Info"
b) Enter to "Custom Program" and upload the files to the console:
