How to customize workout program for e1-console treadmill (550Te1)

(Standard Operating Procedure)

V01, 20181005

Application:

Model	Console	Serial# Range	Check & Apply
550T	only e1 series	All	N/A

Knowledge: Windows skills (Notepad application)

Time/Man Power: 5-10 min / 1 person

Tools:


USB STICK	LAPTOP
If Necessary	If Necessary

Description:

1- Custom files: Create *.CSV files with ANSI format and rename according to the instruction (Below naming is only for Treadmill) or use the attached template.

2- Tool:

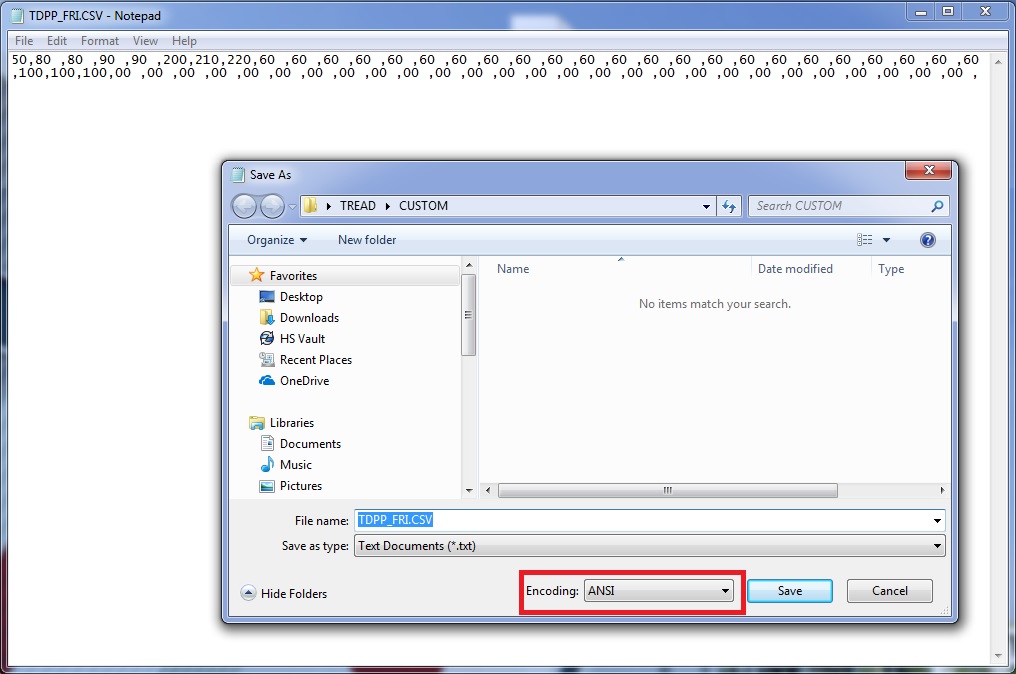

Use Notepad to edit the *.CSV files
Make sure save the files in ANSI format after the edit.

3- Time (minutes):

First 2 digits before the first comma are representing the total time of the workout which will be divided into 30 intervals. You MUST fill 2 characters for this section. It means if you need to enter time 1 – 9 minutes then you should enter one “space” after the number or a “0” before that as below:

1-digit Number +

x1 space

2-digit Number

- 1 minute:

- 50 minutes:

1 ,

01,

50,

4- Speed & Incline:

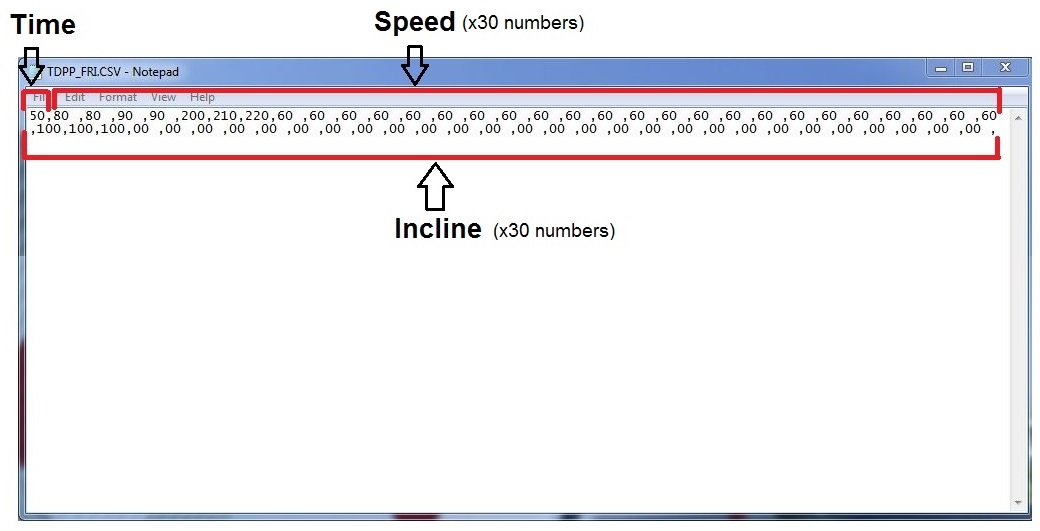

After the Time, the first 30 numbers (3 digits each) are representing the speed and the last 30 numbers (3 digits each) are for incline level. You MUST fill 3 characters for each number.

If the number is only one digit, use:

x2 “space” after the number or
“00” before the number or
x1 “0” before and x1 “space” after the number.

For example:

1 digit Number +

x2 space

2-digit Number +

x1 space

3-digit Number

- 0 value, incline:

- 0.8 (speed):

- 0.5 (incline):

- 6 or 10 (speed):

- 15 (incline):

,0 ,

,8 ,

,5 ,

,00 ,

,08 ,

,05 ,

,60 ,

,008,

,100,

,150,

NOTE:

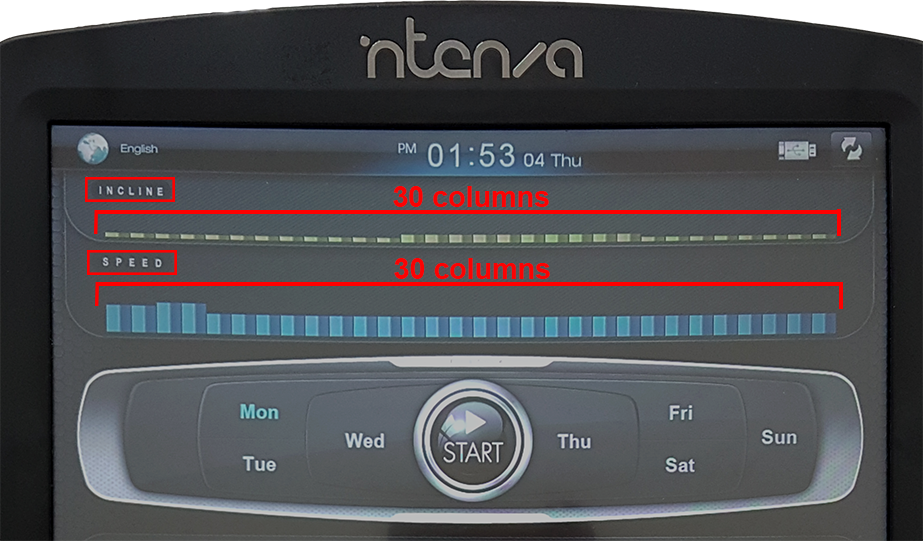

Why Speed and Incline have the capacity to enter 30 data sets?

Because the console is displaying these 2 variables using 30 columns for each and each data sets in the CSV file represents one column on the console.
