How to Customize Workout Program for e1-console Treadmill (550Te1)

(Standard Operating Procedure)

V01, 20181005

Application:

Knowledge: Windows skills (Notepad application)

Time/Man Power: 5-10 min / 1 person

Tools:

Description:

1- Custom files: Create *.CSV files with ANSI format and rename according to the instructions (Naming below is only for Treadmill) or use the attached template.

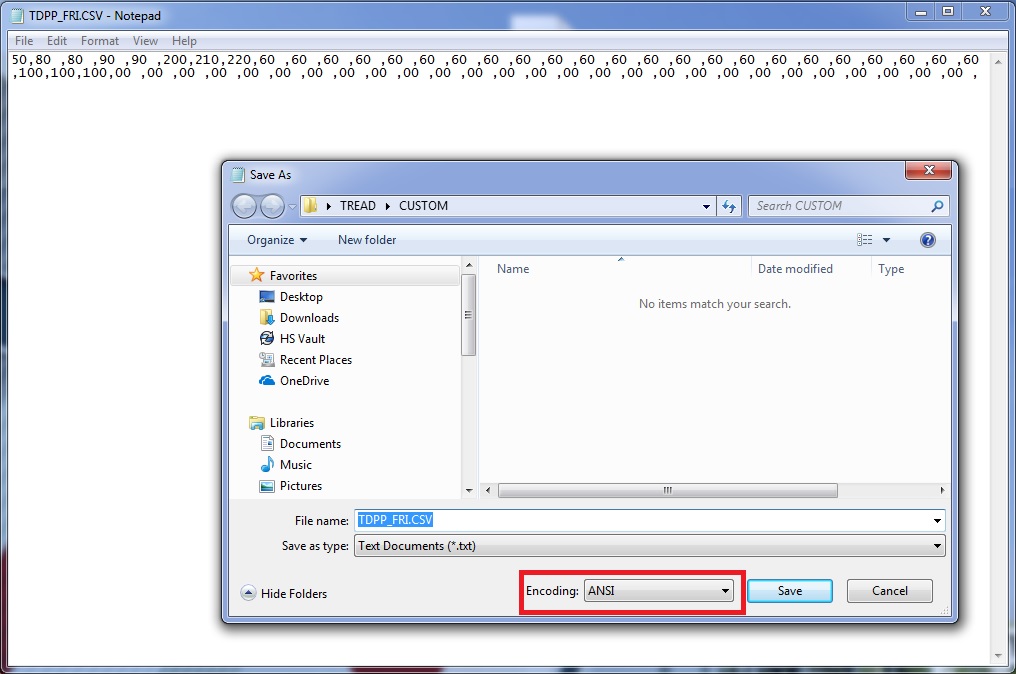

2- Tool:

• Use Notepad to edit the *.CSV files
• Make sure save the files in ANSI format after the edit.

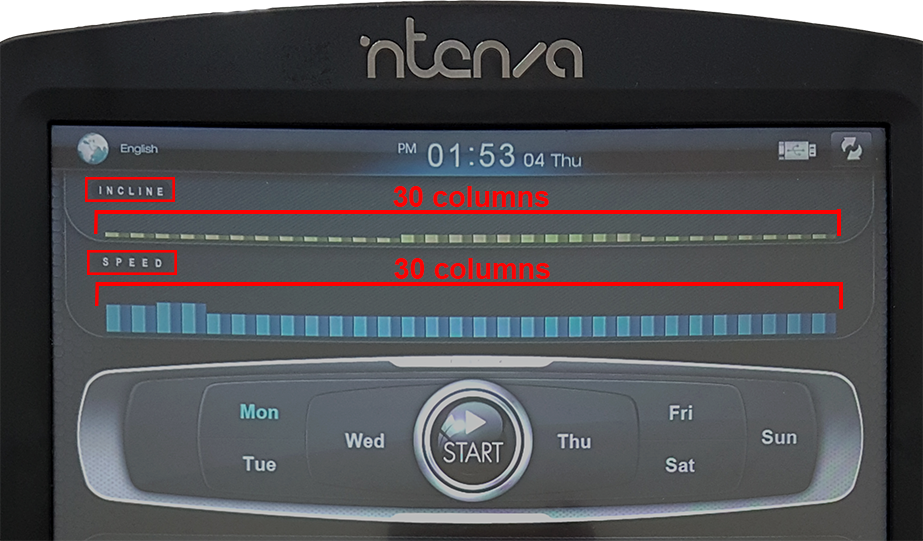

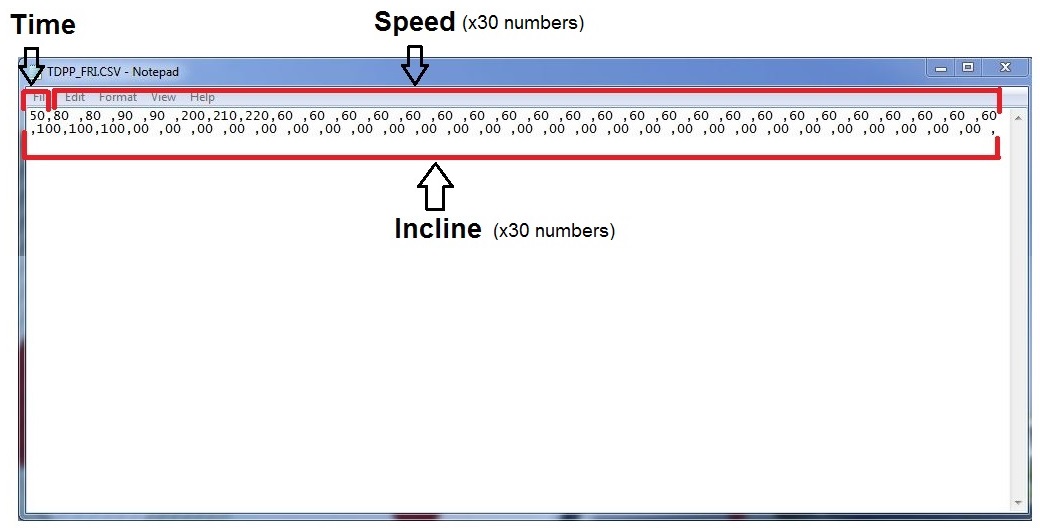

3- Time (minutes):

First 2 digits before the first comma represent the total time of the workout which will be divided into 30 intervals. You MUST fill 2 characters for this section. It means if you need to enter time 1 – 9 minutes then you should enter one “space” after the number or a “0” before that as below:

4- Speed & Incline:
After the Time, the first 30 numbers (3 digits each) represent the speed and the last 30 numbers (3 digits each) are for incline level. You MUST fill 3 characters for each number.

If the number is only one digit, use:

• x2 “space” after the number or
• “00” before the number or
• x1 “0” before and x1 “space” after the number.

For example:

5- Copy the customized files in below route:

6- Copy all below 4 folders to the root directory of USB memory:

• USB memory must be in FAT32 format.

7- After you have the customized files ready, follow the below video to run it on Intenza e1 console:
