(Standard Operating Procedure)
V1.2, 20200714
Application:
|
Model |
Console |
Serial# Range |
Check & Apply |
|
All |
All |
All |
N/A |
Knowledge: Warehousing & Logistic
Description:
In order to avoid any damage due to improper stacking, follow below instructions:
Read the information written in the top right corner of Intenza boxes.

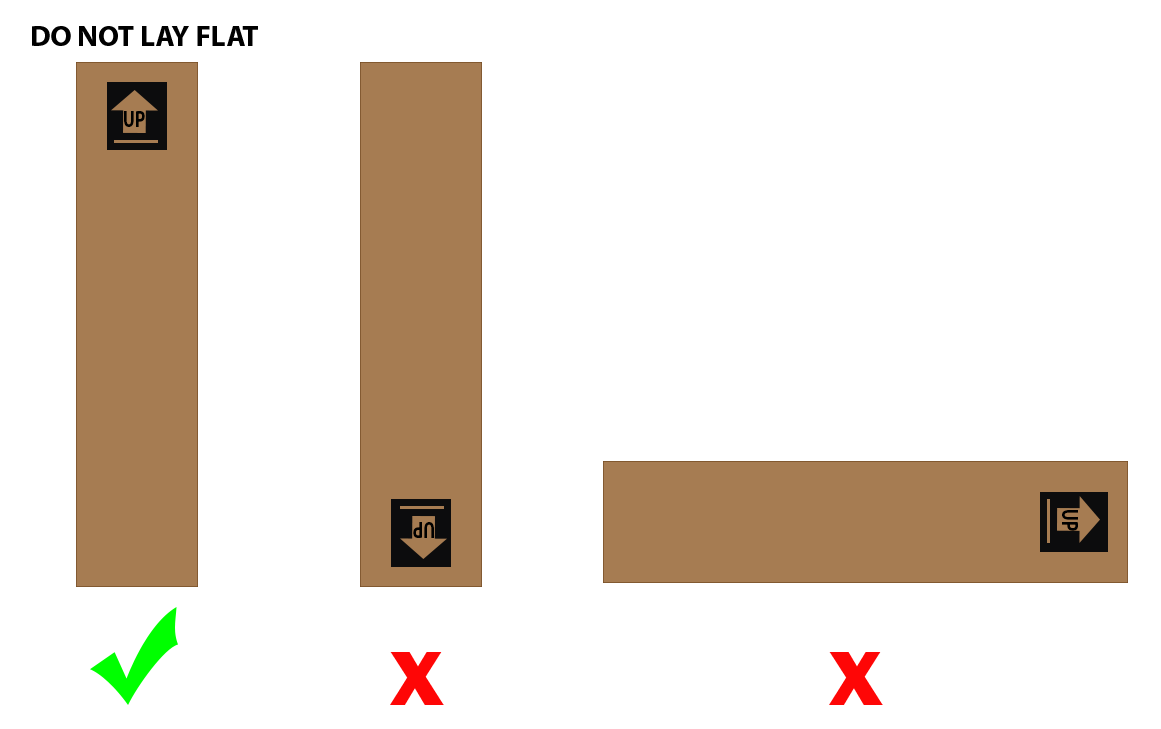

Positioning Direction:
|
NOTE: There are heavy components inside Intenza products which must be kept as instructed and laying down the box or positioning it upside down, will damage the machine and influence it's operation after installation. |
Stacking Layers:
|
NOTE: DO NOT stack over the quantity mentioned on the box. |

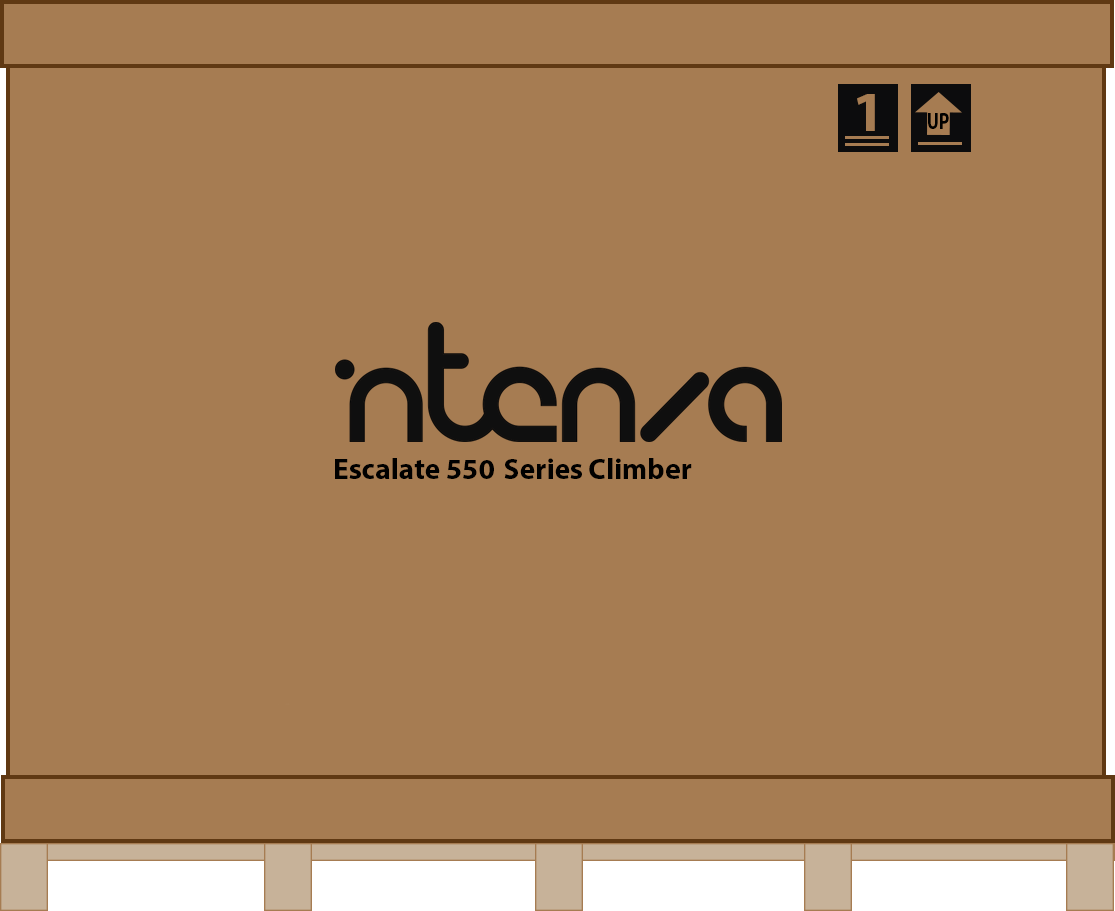

550C ____ Intenza Climber (ONLY one layer)
| 550C: | |
| Equipment Dimensions & Weight | |
|
LxWxH (20 degrees): 193 x 86 x 213cm LxWxH (20 degrees): 76 x 33.8 x 83.8" |
**335kg (739 lbs) |
| Shipping Dimensions & Weight | |
|
LxWxH: 220 x 96.5 x 163.5cm LxWxH: 86.6 x 37.9 x 64.3" |
**431kg (950 lbs) |

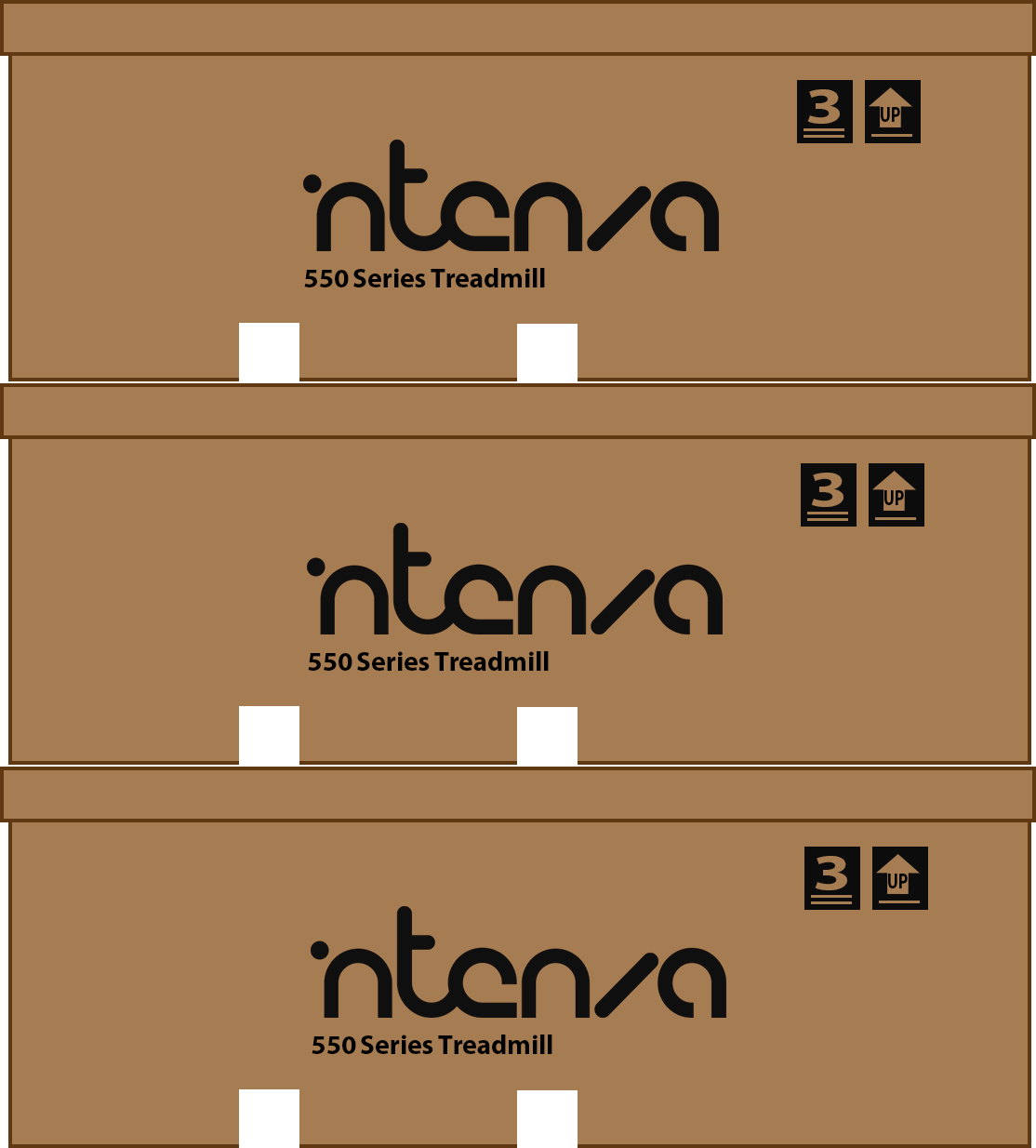

550T ____ Intenza Treadmill (Up To 3 layers)
| 550T: | |
| Equipment Dimensions & Weight | |
|
LxWxH: 215 x 96 x 154cm LxWxH: 84 x 38 x 60" |
*236kg (520 lbs) ^228kg (502 lbs) |
| Shipping Dimensions & Weight | |
|
LxWxH: 225 x 109 x 75cm LxWxH: 88 x 43 x 29" |
*298kg (657 lbs) ^292kg (644 lbs) |

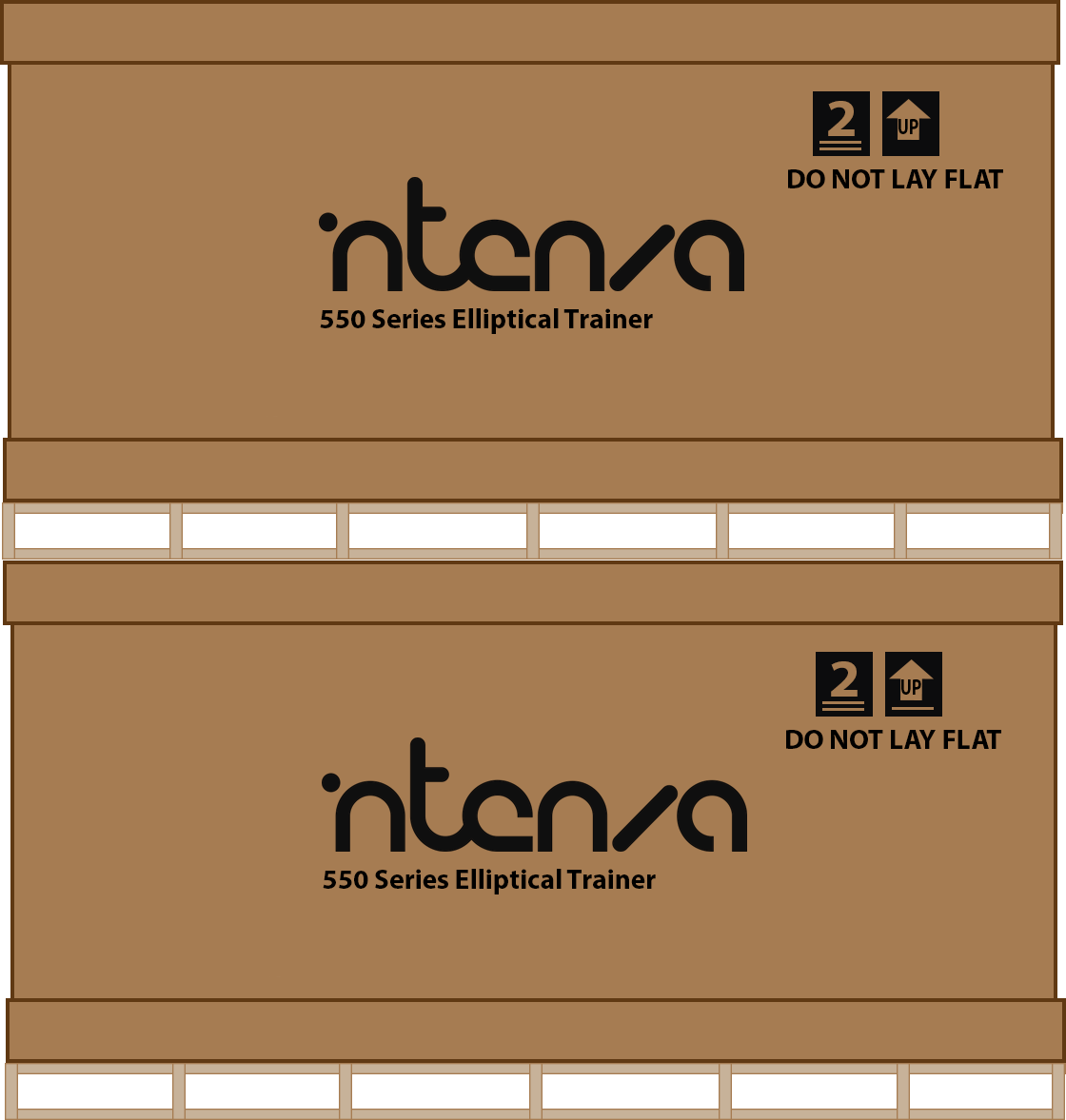

550ET ____ Intenza Elliptical Trainer (Up To 2 layers)
| 550ET: | |
| Equipment Dimensions & Weight | |
|
LxWxH: 209 x 84 x 172cm LxWxH: 83 x 33 x 66" |
*192kg (423 lbs) ^188kg (414 lbs) |
| Shipping Dimensions & Weight | |
|
LxWxH: 220 x 78 x 100cm LxWxH: 87 x 31 x 39" |
*248kg (527 lbs) ^244kg (537 lbs) |

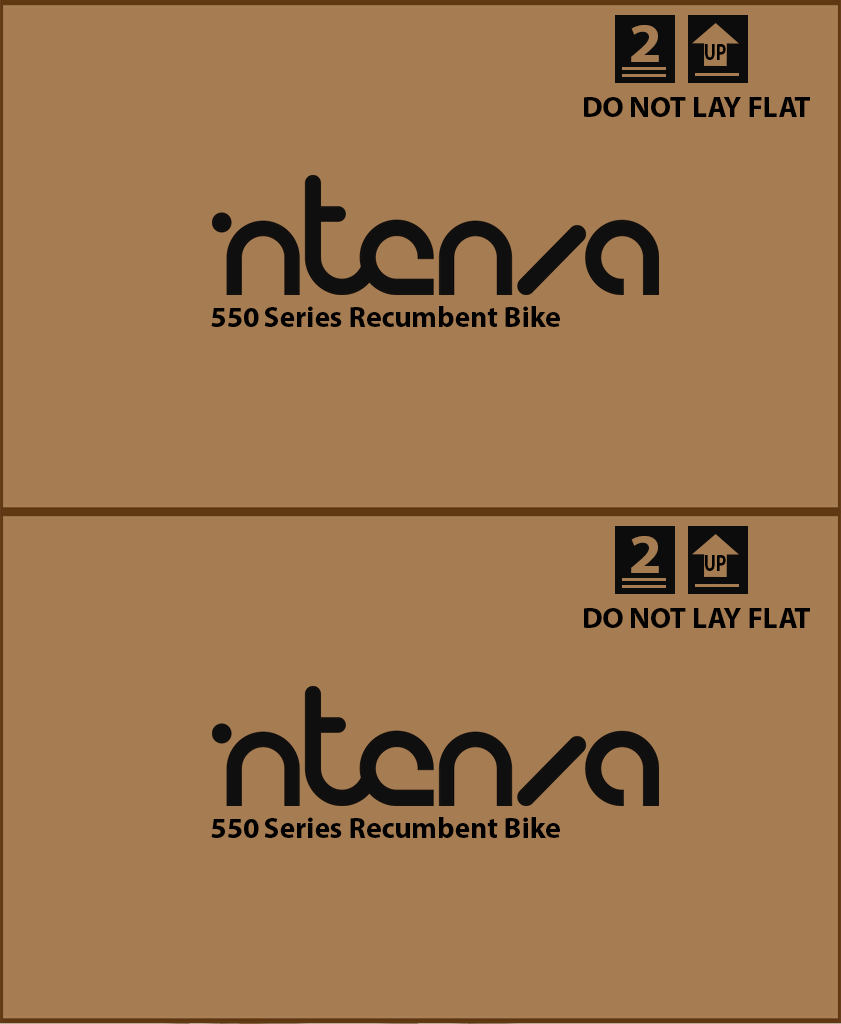

550RB ____ Intenza Recumbent Bike (Up To 2 layers)
| 550RB: | |
| Equipment Dimensions & Weight | |
|
LxWxH: 160 x 70 x 124cm LxWxH: 63 x 28 x 49" |
*109kg (240 lbs) ^102kg (225 lbs) |
| Shipping Dimensions & Weight | |
|
LxWxH: 169 x 38 x 101cm LxWxH: 67 x 15 x 40" |
*119kg (262 lbs) ^112kg (247 lbs) |
550UB ____ Intenza Upright Bike (Up To 2 layers)
| 550UB: | |
| Equipment Dimensions & Weight | |
|
LxWxH: 122 x 67 x 146cm LxWxH: 48 x 26 x 57" |
*78kg (122 lbs) ^62kg (134 lbs) |
| Shipping Dimensions & Weight | |
|
LxWxH: 148 x 24 x 109cm LxWxH: 58 x 9 x 42" |
*88kg (194 lbs) ^83kg (182 lbs) |

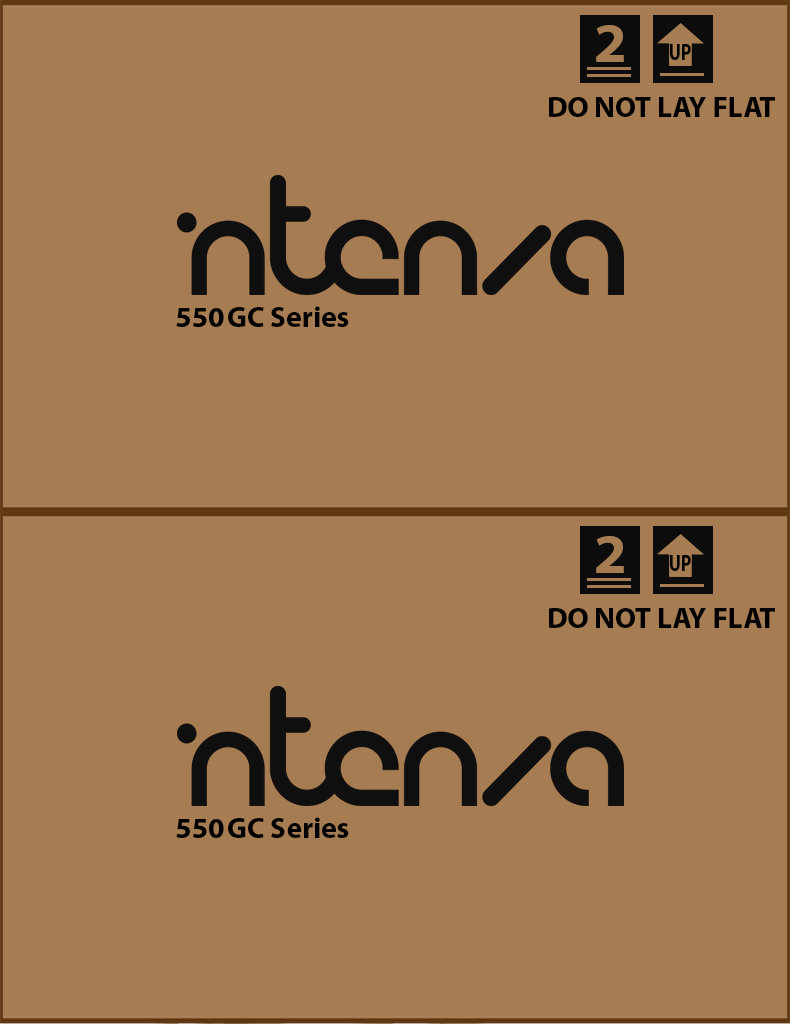

550GC ____ Intenza GC Series (Up To 2 layers)
| 550GC Series: | |
| Equipment Dimensions & Weight | |
|
LxW: 130 x 58cm LxW: 51.18 x 22.83" |
*62.5kg (138 lbs) ^60.5kg (133 lbs) |
| Shipping Dimensions & Weight | |
|
LxWxH: 128 x 23 x 106cm LxWxH: 50.4 x 9 x 41.7" |
*73.5kg (162 lbs) ^71.5kg (158 lbs) |
